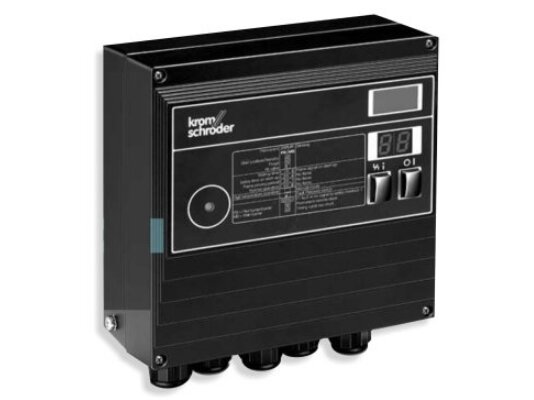

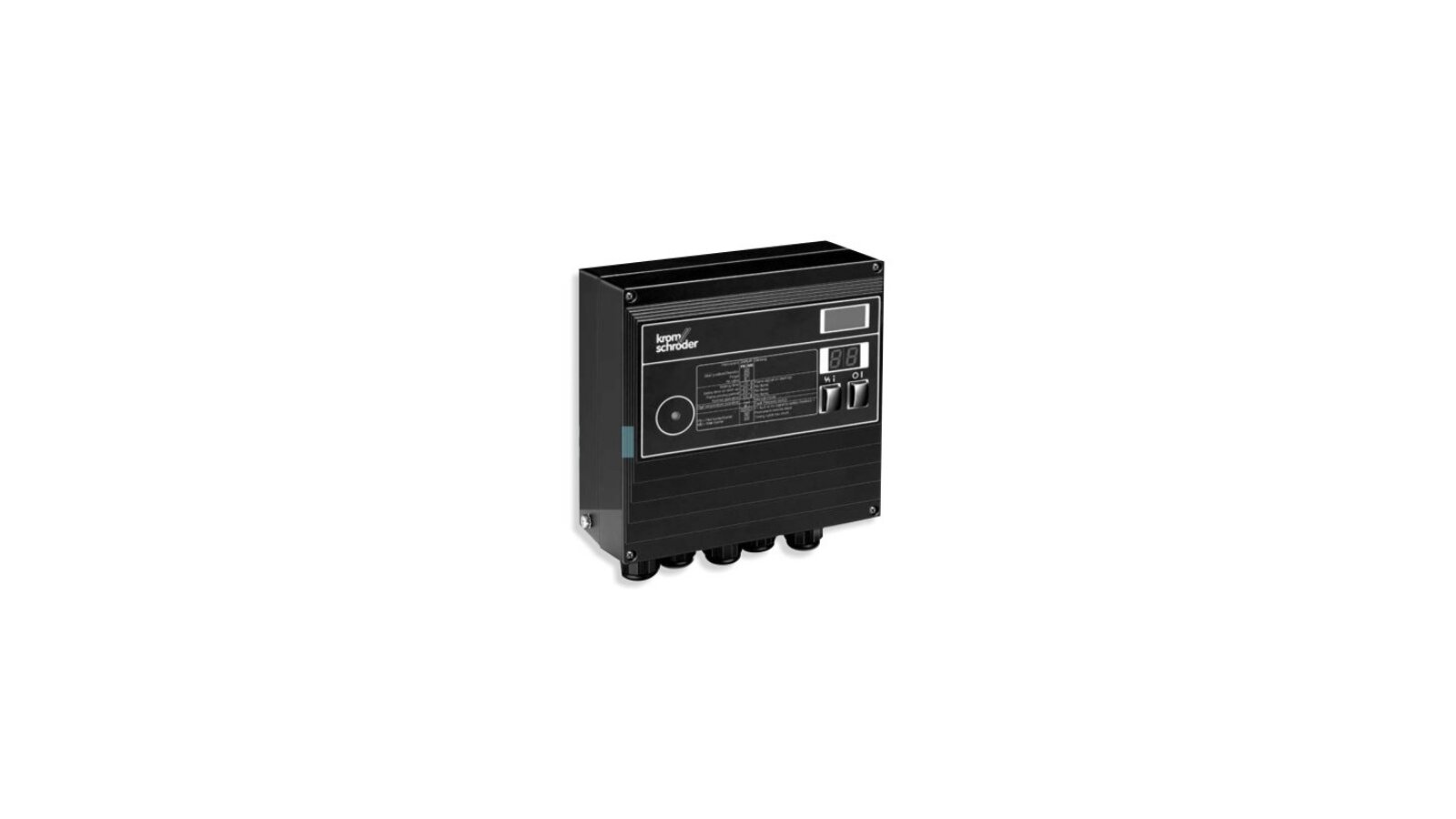

The Kromschroder BCU 460W3P2C0D0000K1E1-/LM400WF3O0E1 burner control unit is used to equip industrial gas burners with direct ignition and unlimited power. It manages all phases of combustion, controls the safety of operations. It is easily programmable using the built-in interface and panel with a display.
Features and Functions:
- applications in progressive/ electronically modulated forced-air burners;
- constant operating mode;
- flame control by UV sensor, ionization electrode or indirectly, by temperature in the combustion chamber (option);
- power supply parameters: 220-240 V, 50-60 Hz;
- air valve control;
- built-in high-efficiency igniter;
- permissible operating temperatures: -20...+60 °C;
- metal ergonomic housing, display;
- program status indication, operating parameters and flame signal strength;
- automatic/ manual control mode;
- visualization of modes and configuration using a computer and BCSoft software;
- fast and reliable electrical connection;
- built-in PROFIBUS-DP data exchange bus interface;
- completeness with cables for electrical connection.
Kromschroder BCU460 burner controls support modern network protocols, which significantly simplifies integration into the overall automation system of the enterprise, allows you to organize remote monitoring and control of processes through specialized software of a higher level.
Características
Número da peça do fabricante: 88681344Safety time (ts): 1 sPre-ventilation time (tv/tp): 0 sBurning method: turbochargedOperating mode: continuous operationPresence of a plinth: noFuel type: gaseousVoltage: 220 VBurner type: progressive, electronically modulated
