Descrição

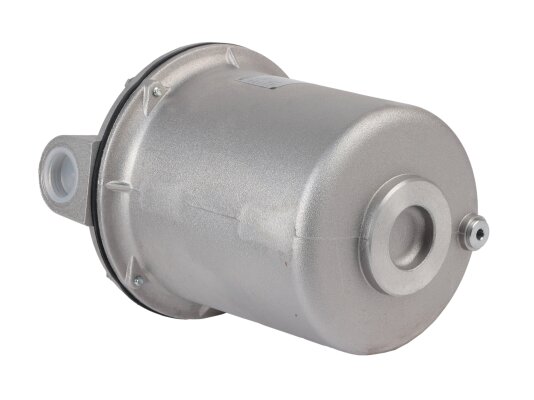

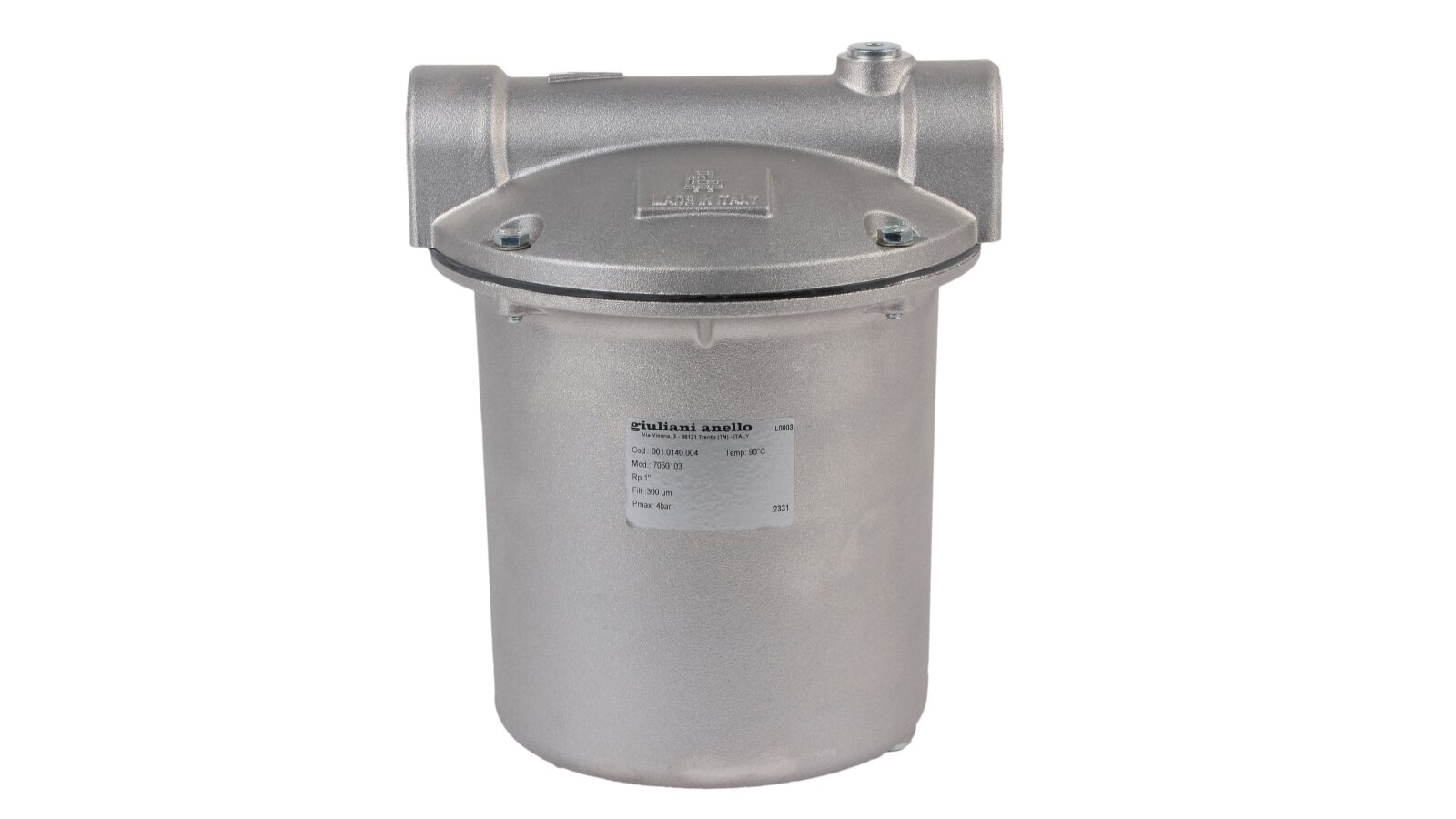

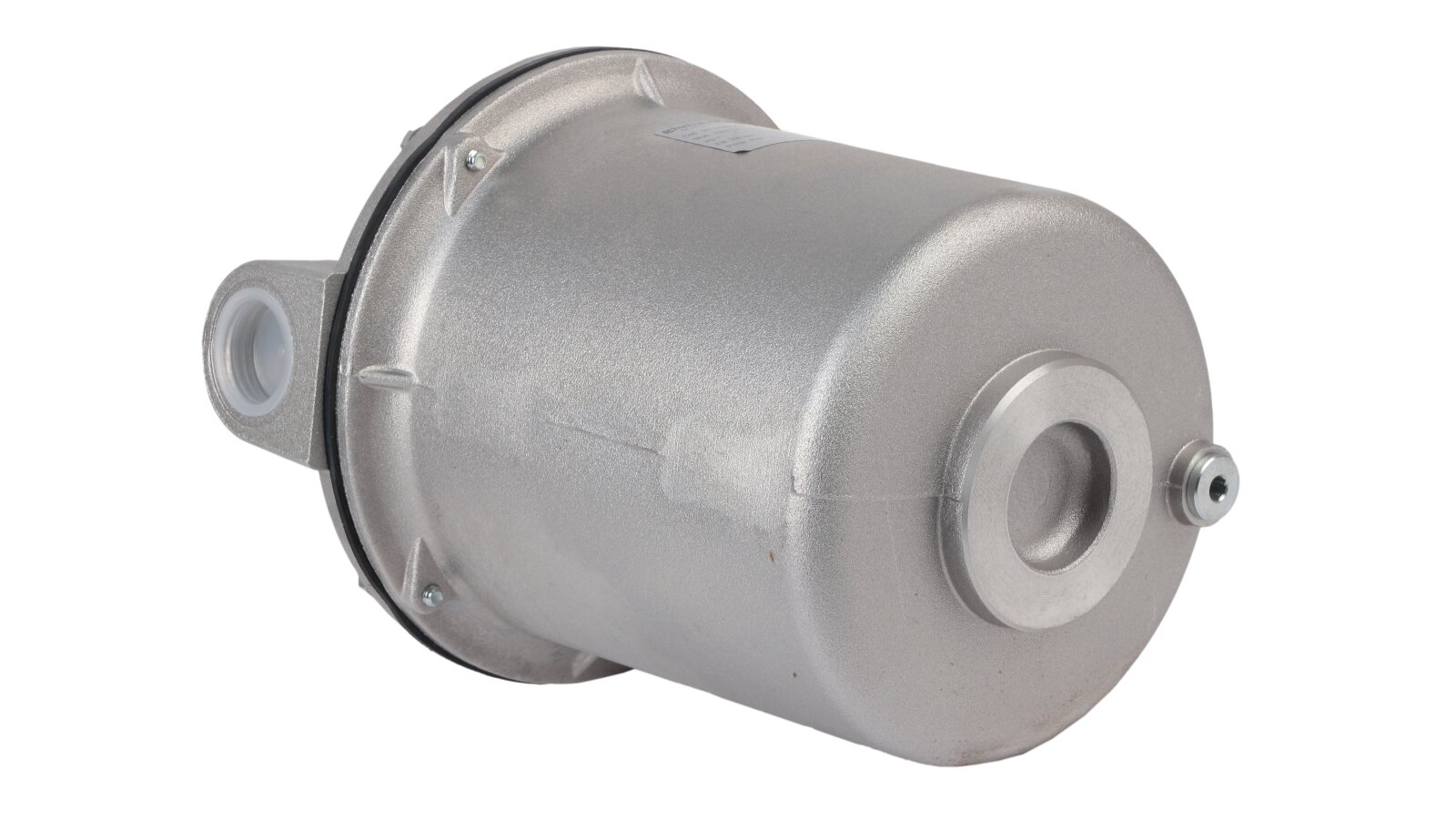

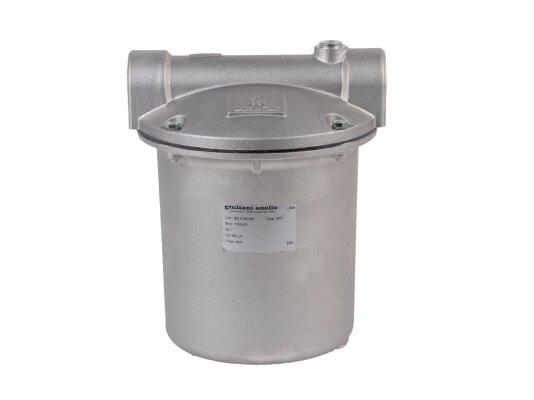

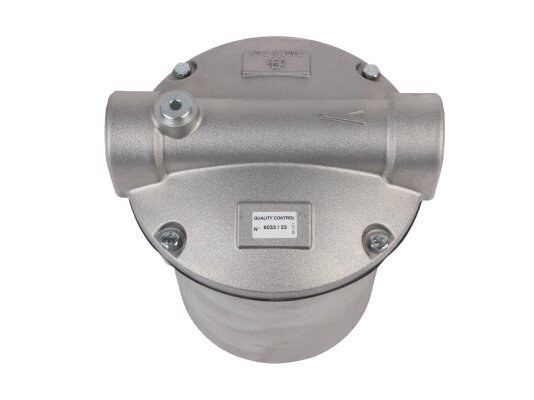

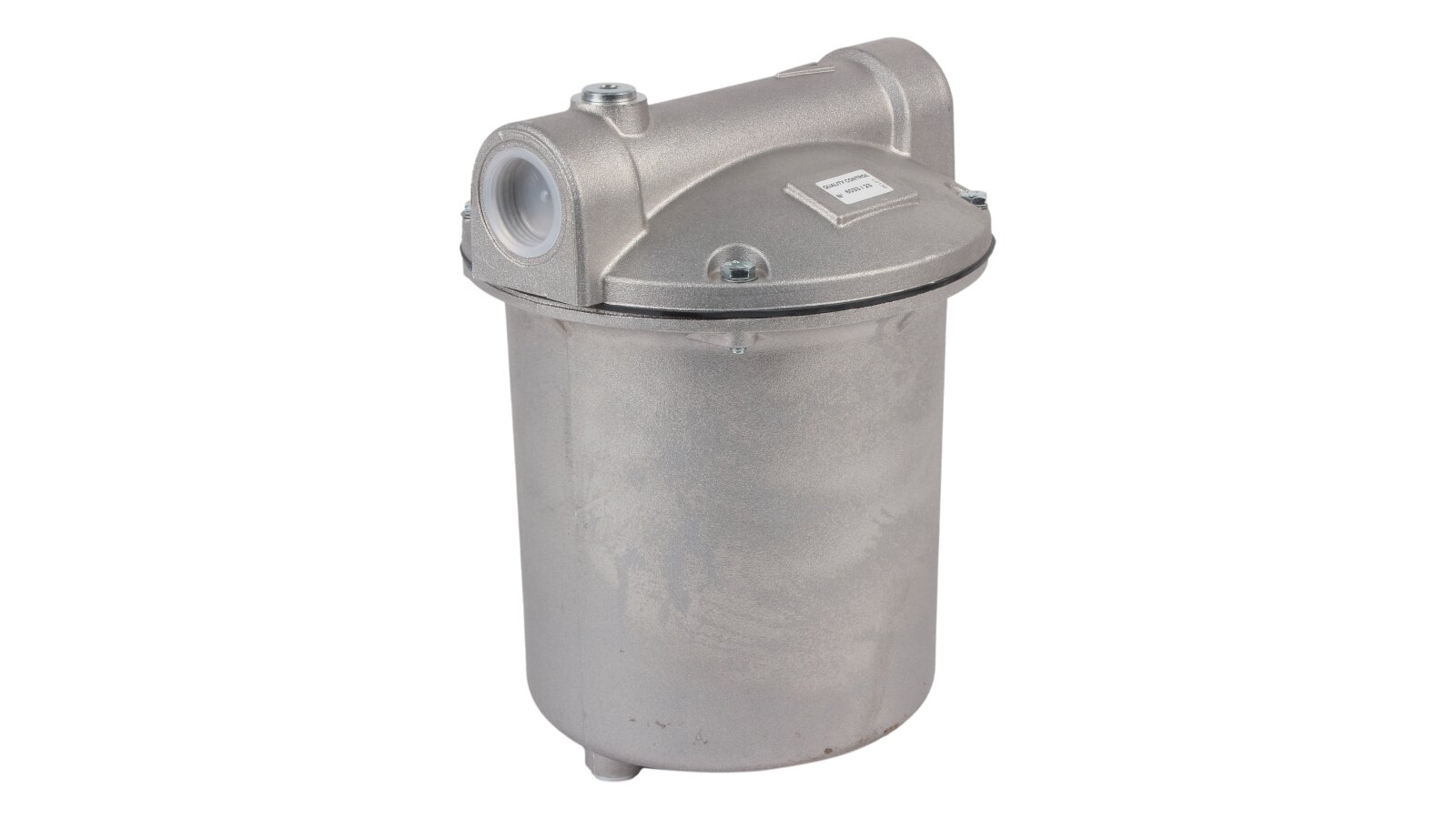

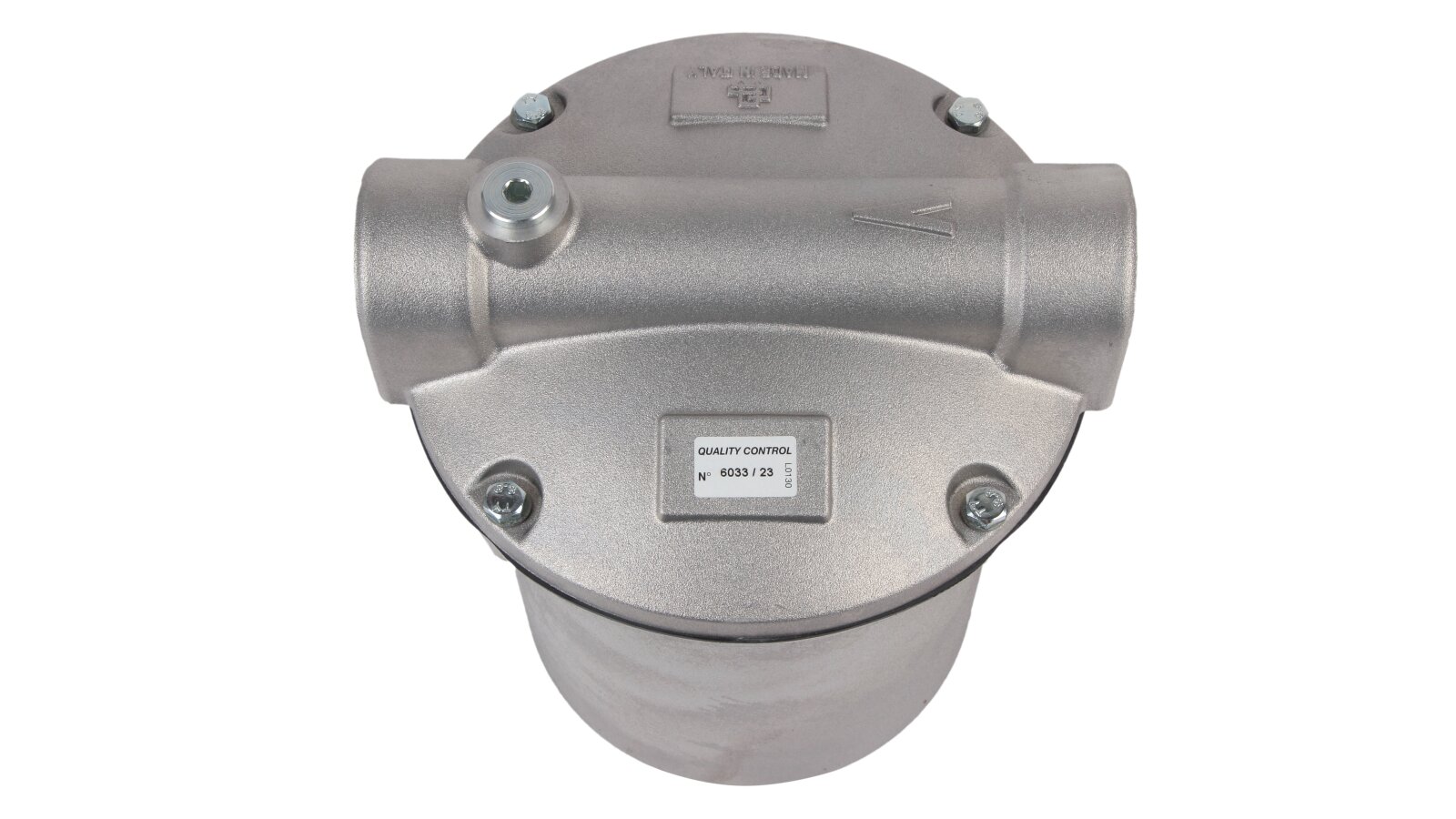

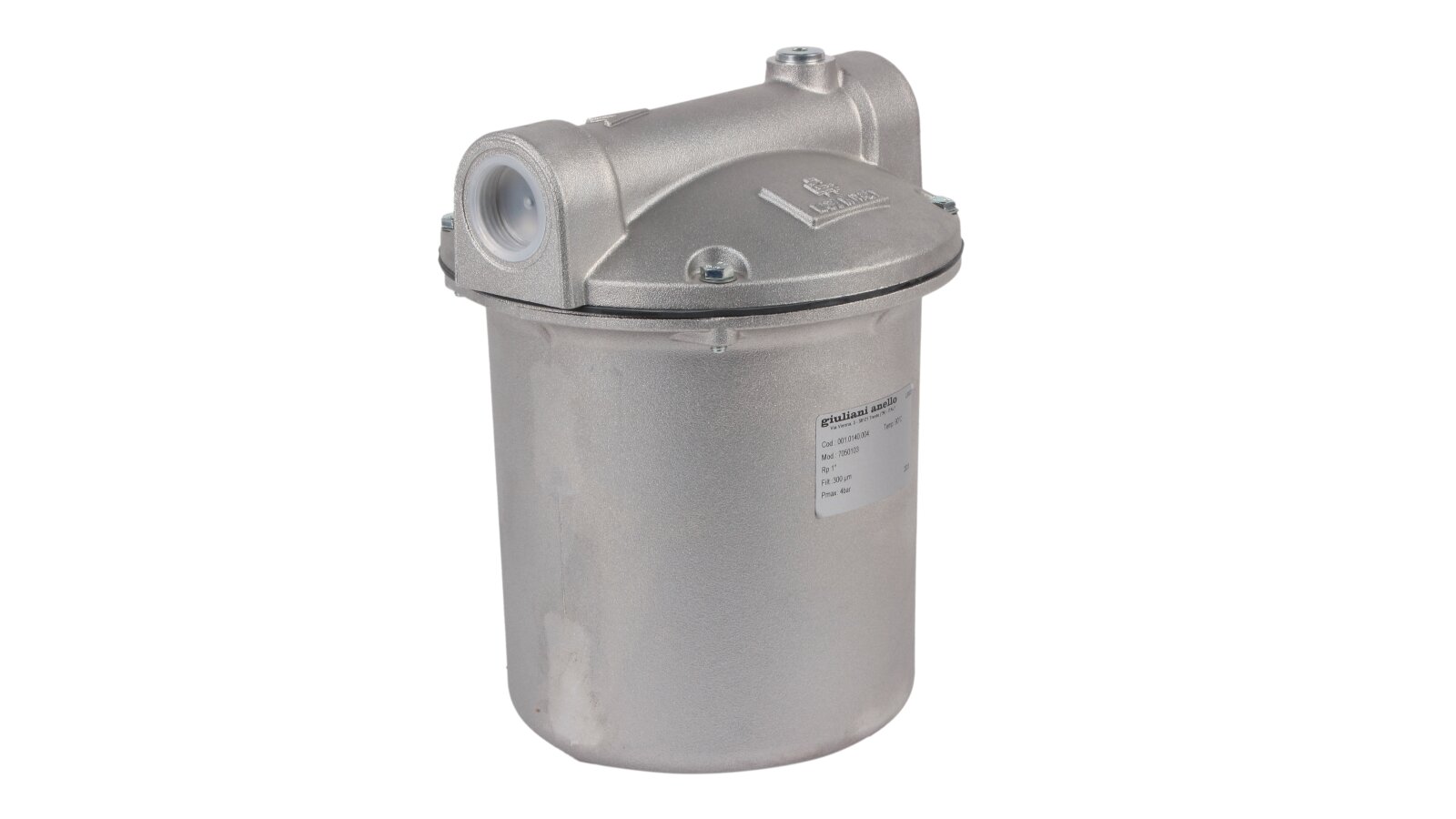

The Elco 70501/03 liquid fuel filter, art: 65324103, is integrated into industrial combustion systems for liquid fuels with a working medium pressure of up to 4 bar. Effectively cleans the flow from dirt, debris, rust, sand and other coarse particles. Easy to install due to threaded connections.
Parameters and features:
- working medium: fuel oil, diesel fuel;
- filtration capacity: 300 μm;
- maximum working medium pressure: 4000 mbar;
- mounting in a system using Rp 1" threaded connections;
- corrosion-resistant cast aluminum alloy body with lid;
- maximum operating temperature. +90 °C;
- filter element made of galvanized stainless steel;
- NBR rubber seal.
Liquid fuel filters with a Viton seal are available for working with biodiesel.
Características

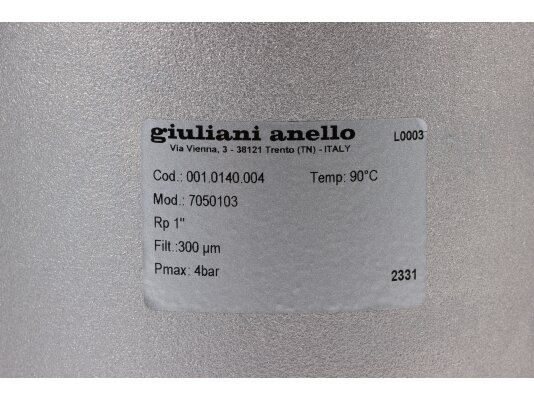

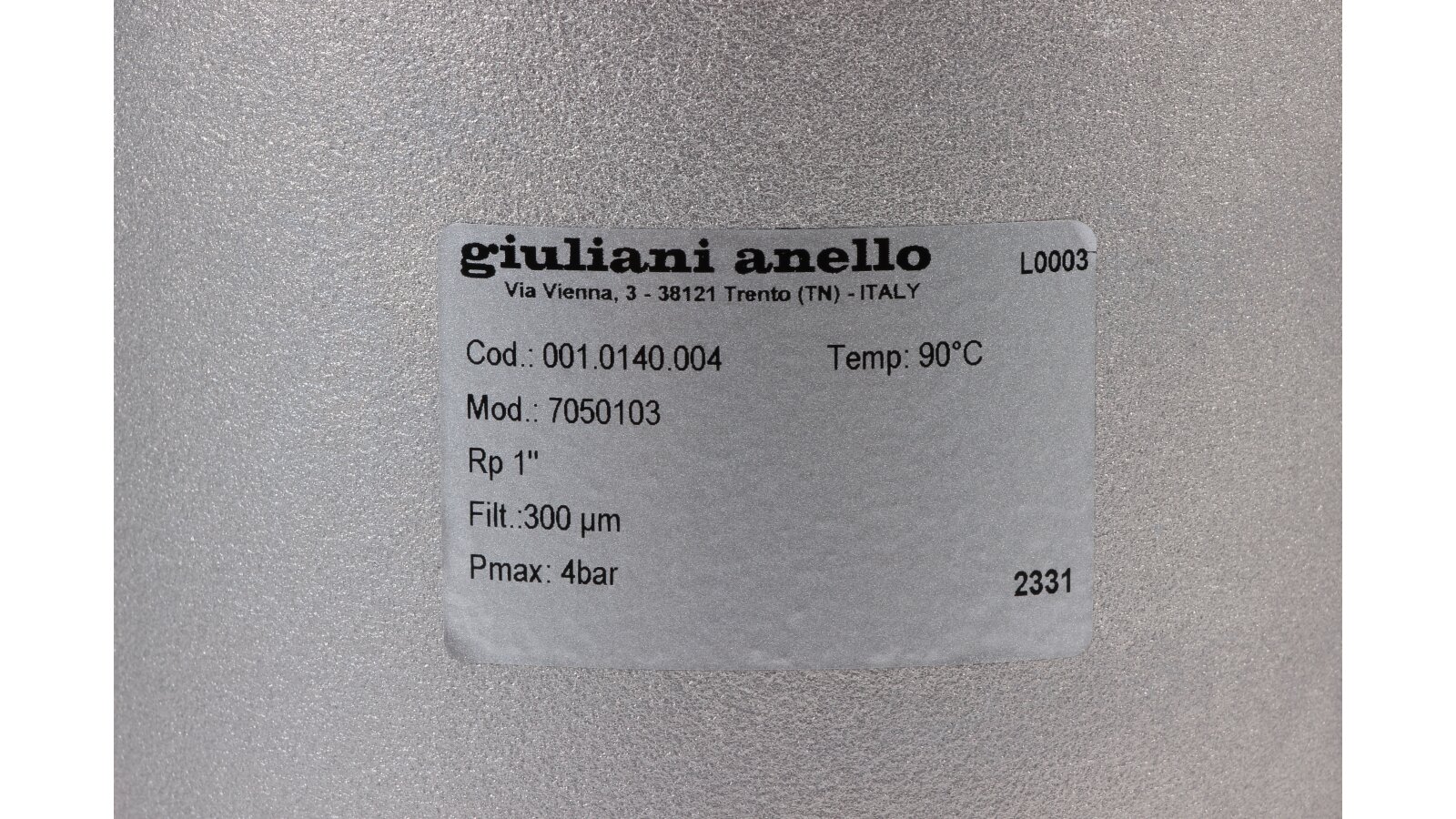

Número da peça do fabricante: 65324103Maximum operating temperature: 90 °CMaximum working pressure: 4 barConnection type: Rp 1"Fuel type: diesel fuel / mazutFilter grade: 300 µmMaterial type: aluminium
As informações sobre as características técnicas, aparência e cor do produto são apenas para referência e baseiam-se nas informações mais recentes disponíveis no momento da publicaçãoLocais de instalação
