Descrição

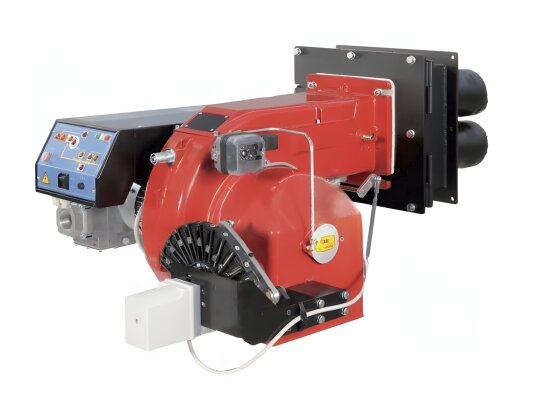

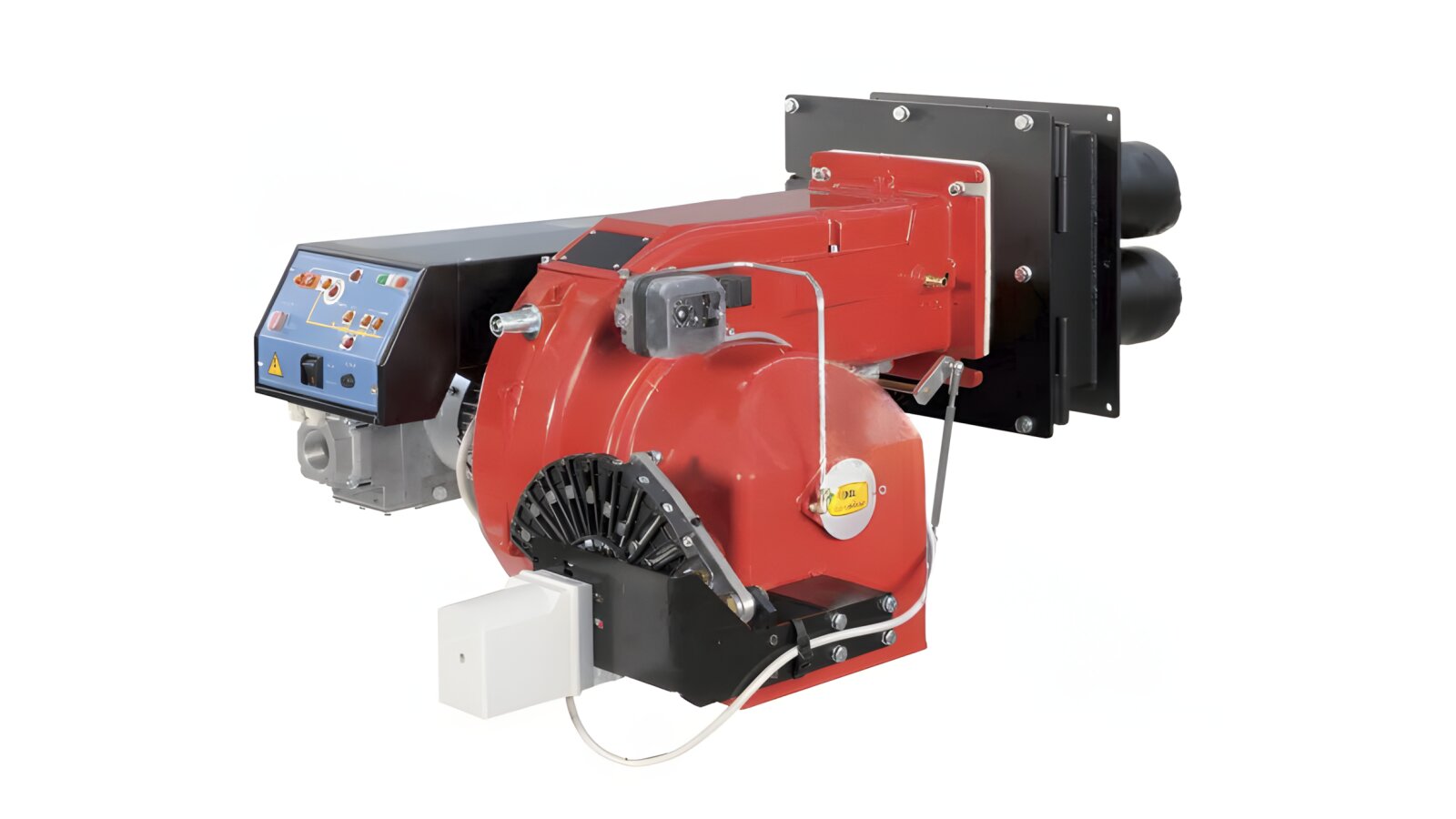

These burners were designed for use on boilers with very short combustion chambers, where the boiler walls or tube bundles are in immediate proximity to the flame. The flame was divided into four combustion heads, resulting in a significant shortening of the flame length.
0 = 2 valves.
VS = short-flame burners.
Características
Fuel type: gasolineBurner power: from 332 to 1,100 kWRamp gas pressure: from 4.9 to 39.8 mbarGas consumption: from 35 to 116 nm³/hCounterpressure: from 0 to 12 mbarElectric motor: 1,500 WElectrical power consumption: 2,000 WOperating temperature: from -10 to 50 °CThe length of the flame pipe: 195 mmDegree of protection: IP40Included accessories: with a combustion head and with a gas rampFlame pipe type: standardConnection type: Rp 2"Burner type: progressive-mechanicalVoltage: 380 V
As informações sobre as características técnicas, aparência e cor do produto são apenas para referência e baseiam-se nas informações mais recentes disponíveis no momento da publicação
